Description

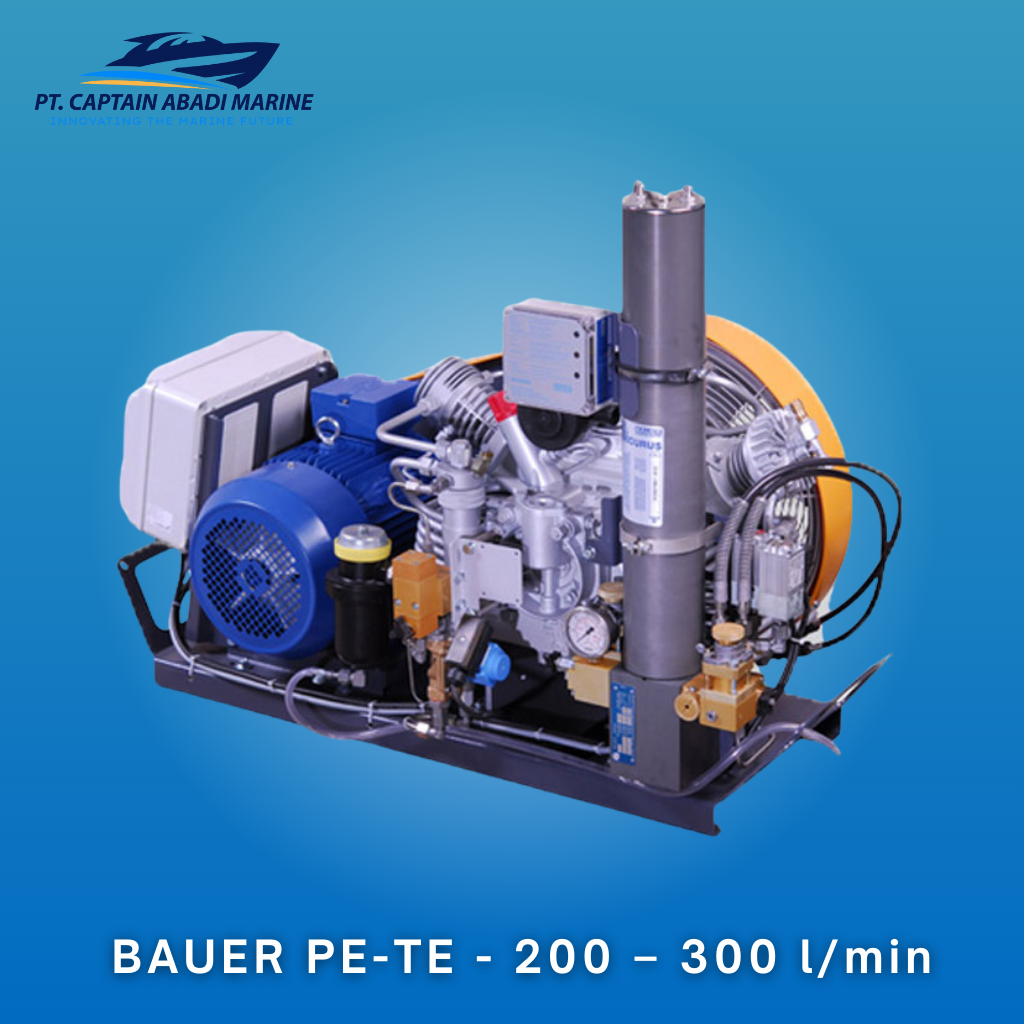

PE-TE – 200 – 300 l/min Poseidon Edition
units combine core components from BAUER KOMPRESSOREN in uncompromising quality whose ability to perform is beyond doubt with equipment that has been optimised for its intended purpose. The familiar durability, high safety and clean air quality conforming to international norms and standards naturally also comes as part of the package.
The PE-TE breathing air compressor series strikes a particularly good balance between price and free air delivery. Their integrated oil pump supports angles of inclination of up to 15 degrees, making this series of units particularly suitable for use on ships or for installation in vehicles.
Thanks to their compact dimensions, the units are very easy to transport and will fit into the boot space of many cars.
Spesifikasi
PE-TE compressor series, up to 330 bar, 200-300 l/min, high-pressure compressor for compressing air and breathing air
|
Type Designation
|
Charging Rate
|
Drive
|
Filter System
|
Net Weight
|
Dimensions LxWxH
|
|
|
I/min
|
Motor
|
kW
|
approx. kg
|
cm
|
||
|
PE-200 TE
|
200
|
Three-phase motor, 400 V, 50 Hz ²
|
4.0
|
P 21
|
120
|
110 × 50 × 57
|
|
PE-250 TE
|
250
|
Three-phase motor, 400 V, 50 Hz ²
|
5.5
|
P 21
|
130
|
110 × 50 × 57
|
|
PE-300 TE
|
300
|
Three-phase motor, 400 V, 50 Hz ²
|
7.5
|
P 21
|
140
|
110 × 50 × 57
|
